A leaking dry bag ruins expensive gear in seconds. For outdoor equipment brands, medical device suppliers, and military contractors, product failure is not an option. A single micro-leak destroys customer trust and triggers costly product recalls.
Top airtight bag manufacturers do not rely on luck or basic stitching. They build hermetic products using advanced material science, specialized machinery, and strict testing protocols.
At Weierken, we engineer high-performance bags designed to withstand extreme pressure and harsh environments. Here is how professional factories build truly leakproof bags from the ground up.
1. Advanced Material Selection: TPU vs. Standard Substrates
Standard waterproof bags often use woven nylon coated with Polyurethane (PU). While this combination repels light rain, it cannot hold air under continuous pressure. Gas molecules slowly pass through thin PU layers over time.
Professional factories use heavy-duty Thermoplastic Polyurethane (TPU) or specialized PVC composite fabrics. TPU serves as the premium choice for modern, durable dry gear.
Why TPU Outperforms Conventional Fabrics
TPU provides exceptional airtight performance due to its unique chemical structure. It combines elastic flexibility with high mechanical strength.
Molecular Melt Capability: TPU coatings melt cleanly under heat and fuse together permanently.
Puncture Resistance: High tensile strength prevents sharp objects from creating micro-punctures.
Abrasion Resistance: It withstands rough surface friction without stripping the waterproof layer.
Low Temperature Flexibility: TPU remains flexible in freezing climates without cracking at the seams.
During TPU airtight pouch manufacturing, liquid TPU extrudes directly onto high-density nylon or polyester bases. This process forms an airtight bond that prevents delamination under heavy loads.
2. Radio Frequency (RF) Welding Over Traditional Sewing
Traditional sewing machines push needles directly through fabric. Every stitch creates a hole. Even when factories cover sewn seams with hot-air sealing tape, air eventually leaks out under pressure.
Leading airtight bag manufacturers eliminate needles entirely. They rely on Radio Frequency (RF) welding, also known as High-Frequency (HF) welding, to construct airtight seams.
How Radio Frequency Welding Works
RF welding uses high-frequency electromagnetic energy (typically 27.12 MHz) to agitate the molecules inside thermoplastic materials. This agitation generates heat from within the fabric layers.
Molecular Fusion: The process melts two opposing surfaces at a molecular level.
Unified Seam Construction: Pressure forces the molten polymers together into a single, solid layer.
Superior Strength: The welded seam ends up stronger than the surrounding base fabric.
As an established RF welding bag factory, Weierken uses automated RF machines to maintain consistent pressure and frequency. This eliminates human error and guarantees uniform seam integrity on every batch.

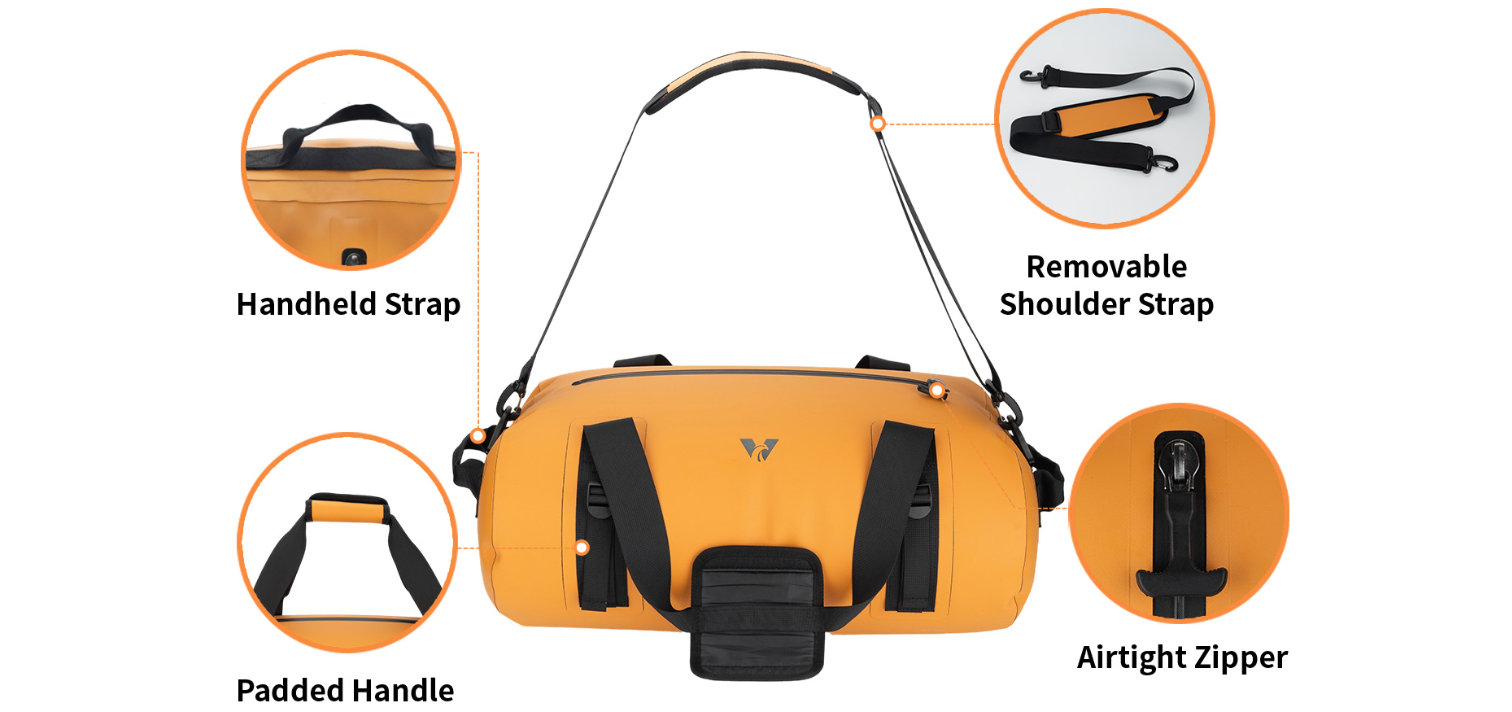

3. Hermetic Zipper Integration and Sealed Closure Systems
The weakest point on any airtight container is the opening. A standard zipper keeps dust out, but air passes right through its teeth. Hermetic systems require specialized gas-tight zipper technology.
Factories must integrate airtight zippers like TIZIP or custom airtight closures directly into the bag body. This step requires specialized tooling and strict temperature control.
Key Techniques for Zero-Leak Closures
Vulcanized Rubber Docks: Zipper ends require vulcanized rubber stops to seal the tiny gap where zipper teeth meet.
Overmolded Valve Ports: Air valves and inflation tubes are welded directly into cutouts using precision RF dies.
Perpendicular Seam Reinforced Welding: The transition zone where the zipper meets the main fabric seam receives double-layer welded patches.
Improper zipper installation causes immediate failure during pressure testing. Leading manufacturers use custom jigs to hold zippers perfectly flat during the welding cycle.
4. Strict Pressure Decay and Submersion Leak Testing
You cannot confirm a bag is airtight just by looking at it. Microscopic pinholes in TPU coatings or tiny gaps in welds remain invisible to the naked eye. Reliable suppliers enforce rigorous hermetic bag testing standards before shipping.
Quality assurance teams run every production run through two main physical tests to verify air retention.
Inflation Decay Testing
Inspectors inflate the finished bag to a set pressure level, usually between 3 to 5 PSI (Pounds per Square Inch). A digital pressure gauge connects to the valve.
The bag sits in a temperature-controlled room for 24 to 48 hours. If the pressure drops beyond a microscopic tolerance limit, the bag fails quality control.
Full Water Submersion Bubble Testing
For instant verification, technicians perform a submerged bubble test. They inflate the bag and sink it completely into a brightly lit water tank.
Inspectors check the tank for rising bubbles. Even a tiny, slow bubble trail reveals the exact location of a micro-leak, allowing engineers to fix tooling issues immediately.
5. Precision Tooling and Corner Stress Relief
Airtight bags often fail at the corners. When an inflated pouch expands, internal pressure pushes outward in all directions. Sharp geometric corners concentrate this force onto small areas of the weld.
To fix this, expert manufacturers design custom tooling that redistributes internal stresses away from weak points.
Engineering Features for Heavy Load Bags
3D Molded Reinforcement Patches: High-stress junctions receive extra TPU patches welded over the base layer.
Radiused Corner Tooling: Custom RF welding dies use smooth, rounded curves instead of sharp 90-degree angles.
Custom Molded Handles: Carry handles weld directly onto outer reinforcement layers, keeping the primary air chamber untouched.
By investing in CNC-machined brass and aluminum welding dies, contract factories create clean seams that distribute internal air pressure evenly.
How Weierken Delivers Zero-Defect Airtight Bags
Building a successful custom leakproof bag requires full control over materials, tooling, and quality assurance. Loose factory standards lead to high field failure rates and ruined product launches.
Weierken operates as an expert airtight dry bag OEM partner. We help global brands bring high-performance airtight equipment to market with zero compromise on quality.
Our manufacturing capabilities include:
State-of-the-art high-frequency welding lines.
Dedicated TPU cutting and clean assembly areas.
100% inflation testing on all hermetic product runs.
Custom engineering support for specialized industrial and outdoor applications.
Build Your Next Hermetic Line with Confidence
Making a bag waterproof is simple, but making it 100% airtight takes engineering discipline. Top airtight bag manufacturers protect your brand reputation through high-grade TPU substrates, precise RF welding, smart corner design, and strict pressure testing.
Are you looking for a reliable manufacturing partner for your next dry bag, airtight backpack, or specialized pouch project?
Contact Weierken today. Request a quote or speak directly with our engineering team to turn your designs into reliable, market-ready products.
Frequently Asked Questions (FAQ)
1. What is the difference between a waterproof bag and an airtight bag?
A waterproof bag keeps rain and surface water out, but it can still leak air under pressure or when submerged. An airtight bag uses fully sealed seams and hermetic zippers that trap air inside completely, allowing the bag to float or withstand full underwater immersion without leaking.
2. Can I order custom airtight bags with my brand's logo?
Yes. As an experienced airtight dry bag OEM, Weierken provides full custom manufacturing. We offer custom sizing, custom color matching, specialized air valves, and screen-printed or molded brand logos that withstand heavy outdoor use.
3. Why is TPU preferred over PVC for airtight bag manufacturing?
TPU is lighter, more flexible in cold weather, environmentally friendlier, and offers higher abrasion resistance than standard PVC. It also forms cleaner welds during RF processing, resulting in longer-lasting, leakproof seams.
4. How do you test airtight bags for leaks during mass production?
We use two primary testing methods: pressure decay testing and full water submersion testing. Inflation decay testing monitors internal PSI levels over a 24 to 48-hour period, while submersion testing helps us spot micro-leaks visually in real-time.
5. Why is RF welding better than ultrasonic welding for thick TPU bags?
RF welding penetrates deeply into thick coated materials by exciting molecules throughout the entire fabric layer at once. Ultrasonic welding relies on surface friction heat, which works fine for thin non-woven materials but struggles to create deep, pressure-tight seals on heavy TPU composite fabrics.
